Energy Meters / Green Meters
YESCO is a trusted supplier of high-quality energy meters in Pakistan, offering both Conventional and Smart Energy Meter solutions. Our product range includes Single Phase Multi-function Energy Meters and Three Phase (TOD) Meters, developed in strict compliance with IEC and WAPDA/PEPCO/GEPCO standards. By partnering with advanced production facilities, we ensure the supply of durable, accurate, and reliable meters tailored to the needs of both utility companies and the private sector.

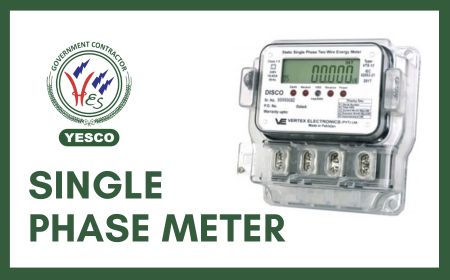

SPECIFICATIONS:
- This meter fully satisfies IEC 62052, Class 1 accuracy requirements.
- The meter is protected against Electromagnetic interferences as
- Electrostatic Discharge (ESD)
- Fast Transient Bursts
- Electrical Surges
- Lightening Impulses
- AC/DC Magnetic Fields as per IEC 61000-X-X requirements.
- Seven digits register showing energy consumption (kWh)
- kWh reading display on LCD in case of power outage/failure
- Current sensors are available on both neutral & phase lines
- Low battery indication when 25% life of the battery is left
- Pulse output (3200 impulses/kWh) displayed by LED on meter face plate
- Reliable LCD with ultraviolet protection
- No effect of tilt /rotation on meter accuracy
- Resistant against dust & moisture

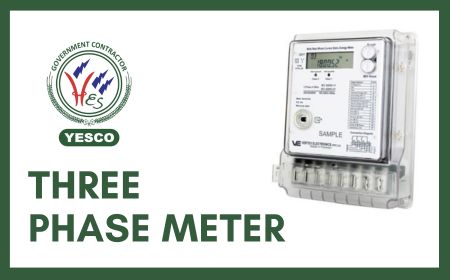

SPECIFICATIONS:
- It satisfies IEC 62052, Class 1 Accuracy Requirements.
- Active and Reactive Energy Measurement.
- Active and Reactive Power Measurement.
- Reading Display in Case of Power Outage/Failure
- Active Energy Class 1.0
- Reactive Energy Class 2.0
- Power Factor
- Instantaneous (by Phase & Average)
- Monthly Average (by Rate and Total)
- Identification and Storage of Reverse Energy Flow Event with Date and Time Stamp
- MDI (Max demand indicator).
- Frequency Measurement.
- Low Battery Indication.
- Pulse Output Displayed on LED for kWh.
- Pulse Output Displayed on LED for kvarh.
- Optical Communication Port for Laptop / PC.
- Programming of Tariff and Seasons through Energy Management System Software
- Reliable high contrast LCD with ultraviolet protection
- Phase Indication (A, B, C).
- Display Scroll and MDI Reset Buttons.

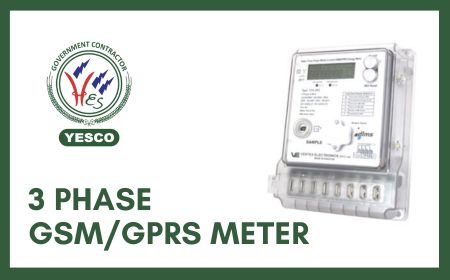

SPECIFICATIONS:
- It satisfies IEC 62053-21 & 23, Class 1 Accuracy Requirements
- Complies to DLSM/COSEM Communication Protocol
- Built in Advanced GSM/GPRS Engine for Secure Data Communication
- GSM/GPRS Communication Status on LCD
- Built-in relay for remotely Disconnection/ Re-connection as per IEC 62058-31
- Active and Reactive Energy Measurement.
- Active and Reactive Power Measurement.
- Reading Display in Case of Power Outage/Failure
- Active Energy Class 1.0
- Reactive Energy Class 2.0
- Power Factor
- Instantaneous (by Phase & Average)
- Monthly Average (by Rate and Total)
- Identification and Storage of Reverse Energy Flow Event with Date and Time Stamp
- MDI (Max demand indicator).
- Frequency Measurement.
- Low Battery Indication.
- Pulse Output Displayed on LED for kWh.
- Pulse Output Displayed on LED for kvarh.
- Optical Communication Port for Laptop / PC.
- Programming of Tariff and Seasons through Energy Management System Software
- Reliable high contrast LCD with ultraviolet protection
- Phase Indication (A, B, C).
- Display Scroll and MDI Reset Buttons.

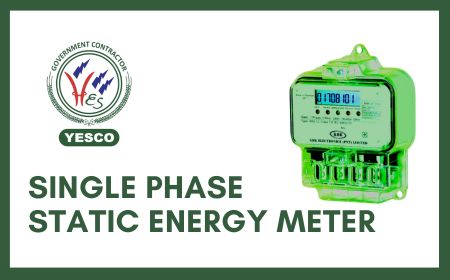

SPECIFICATIONS:
- Single Phase Two Wire, Accuracy Class 1.
- 240V, 10(40) A, 50Hz.
- Meter constant 3200 impulses/kWh.
- Meter complies with IEC Standards 62052-11 & 62053-21 and WAPDA Specification DDS-65.
- Meter records Energy (kWh) in the absence of Neutral.
- Meter records both import and export energy.
- Meter has static components.
- Advance technology based on Microcontroller has been used.
- Meter provides high level accuracy, high security, reliability, and excellent performance.
- Meter provides protection against transients in power line.
- Not affected by partial or fully earthed load.
- Meter is properly shielded against the effect of strong magnetic field.
- Meter provides safeguard against theft of energy (kWh) through dimmer.
- Meter is equipped with fixed long-life battery to display reading in case of power outage.

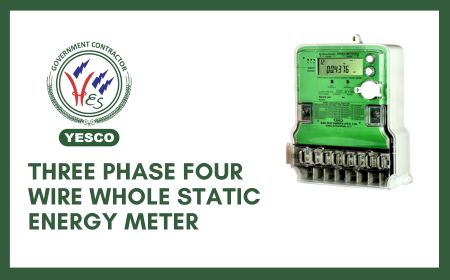

SPECIFICATIONS:
- Three Phase four wire connection.
- 3×230/400V 50Hz 10(100)A.
- 1000 impulses/kWh, 1000 impulses/kvarh.
- Meter specifications comply with relevant IEC Standards 62052-11, 62053-21 & 62053-23 and relevant WAPDA standards.
- Meter records both import and export energy.
- Tampering information along with date and time stamp is recorded.
- “OPENED” is permanently displayed on LCD if the meter cover is opened.
- Phase indicators “L1, L2, L3” blink during current consumption.
- Three inverted triangles on the lower right of LCD indicate abnormal field conditions like abnormal voltage, phase sequence, overload demand, etc.
- Works under individual phase failure and records Active, Reactive energies correctly even at low voltage.

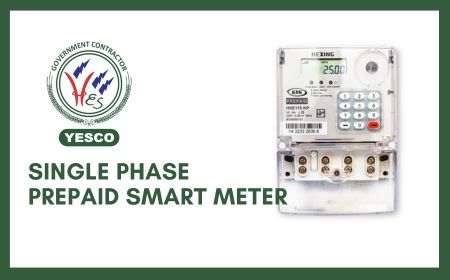

SPECIFICATIONS:
- Single Phase Two Wire, Accuracy Class 1.
- 240V, 10(40) A, 50Hz.
- Meter constant 3200 impulses/kWh.
- Meter complies with IEC Standards 62052-11 & 62053-21 and WAPDA Specification DDS-65.
- Prepaid functionality with minimum balance threshold setting.
- Meter records Energy (kWh) in the absence of Neutral.
- Meter has static components.
- Advanced technology based on Microcontroller has been used.
- Meter provides high-level accuracy, high security, reliability, and excellent performance.
- Meter provides protection against transients in the power line.
- Not affected by partial or fully earthed load.
- Meter is properly shielded against the effect of strong magnetic fields.
- Meter provides safeguard against theft of energy (kWh) through dimmer.
- Meter is equipped with a fixed long-life battery to display reading in case of power outage.
